As you browse the various pages of our online store we are sure questions will arise concern the materials, and construction of our various kennel sizes, and grades. Since 1993 we have helped 1000’s of people just like you choose, and design their kennel size, or grade to suit their particular needs. We don’t just sell dog kennels. We have actually used the products we sell since 1985 with our own Champion Labrador Retrievers. We know what it takes to keep a dog in a kennel. We also know you can go down to the farm store and buy a kennel to put your dog in. We have those, too, but is it the right one. Our kennel panels may cost a little more, but can you really put a price on the safety, and well being of your beloved pet, or a clients expensive hunting dog. Would you rather fix a kennel every time you turn around, or purchase a kennel that is going to give you 20 or more years of service with only keeping it clean. With customer service that is second to none, and the product knowledge we have gained since 1993 we treat people the way we want to be treated, and are committed to providing the best, most hassle free buying experience possible. We are never too busy to answer any questions you may have, so please feel free to call any time.

kennels_page

Outside Kennel Runs at Randolph County Humane Society in Sparta, Illinois



Light Duty

Add the correct number of kennel panels, necessary installation parts, and accessories to create your desired kennel design. Kennel panels may be installed in lengths longer than 8′ simply by bolting multiple panels together.  Longer panels may be picked up at our shop, or see our Multi-Runs pages.

Light Duty Kennel Features:

11-1/2 gauge galvanized chain link 2-1/2″ mesh
1-3/8″ O.D. 16 gauge (.065 wall) galvanized, welded frame

Tension Rods and gate clips at terminals

Aluminum ties spaced 18″ on top rails
Aluminum ties spaced 12″ on bottom rails

*Panels are shipped ready to install *PP=plain panel GP= gate panel

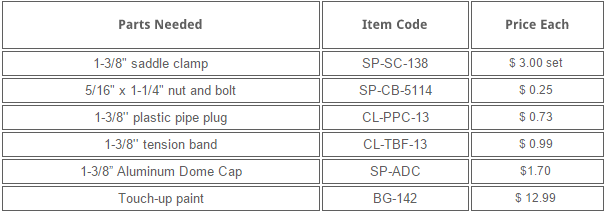

When ordering parts for installation you will need:

2 Saddle Clamps per Panel Connection

1- 5/16”x 1-1/4” Carriage Bolt /Nut per saddle clamp.

1 – 5/16”x1 ¼” Carriage Bolt/nut for each tension band

1- cap for each upright, and 2 per gate.

Don’t forget a shade cover for your new kennel!

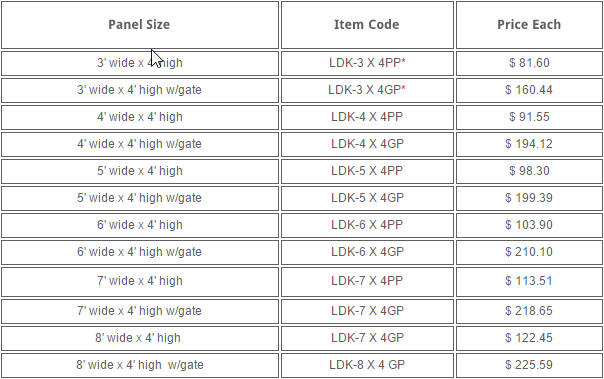

Light Duty 4' Panels

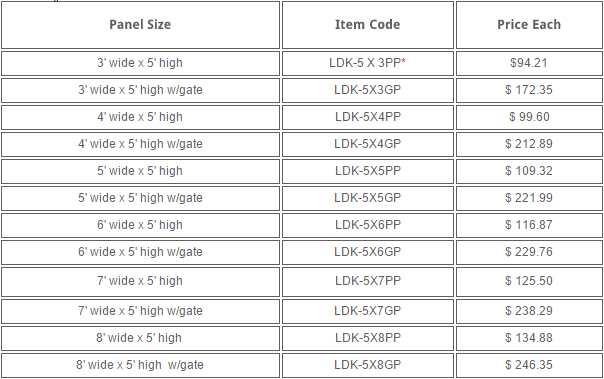

Light Duty 5' Panels

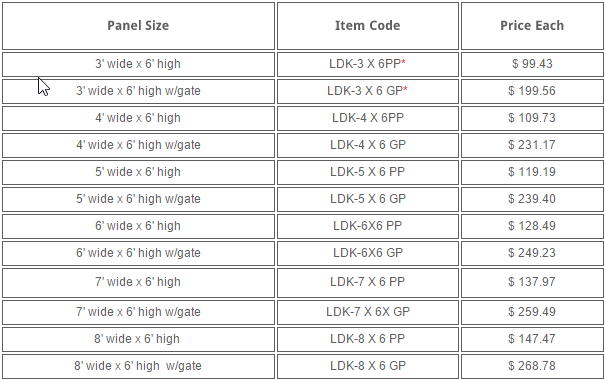

Light Duty 6' Panels

Medium Duty

Add the correct number of kennel panels, necessary installation parts, and accessories to create your desired kennel design. Kennel panels may be installed in lengths longer than 8′ simply by bolting multiple panels together.  Longer panels may be picked up at our shop, or see our Multi-Runs pages

Medium Duty Kennel Features:

Tension Bars, bands, and galvanized bolts, nuts at terminals
11 gauge galvanized chain link 2″ mesh
1-3/8″ O.D. 16 gauge (.065 wall) galvanized, welded frame
Aluminum ties spaced 12″ on top rails
Aluminum ties spaced 6″ on bottom rails

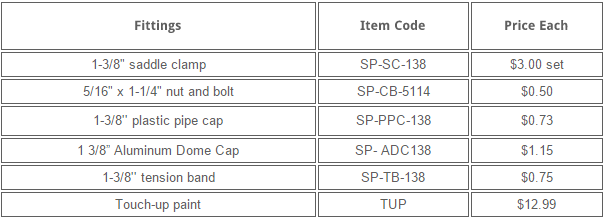

When ordering parts for installation you will need

2 Saddle Clamps per connection

1- 5/16x 1-1/4 Carriage Bolt /Nut per connection.

1- Cap for each upright, and 2 per gate.

Plastic Caps are good but Aluminum Dome Caps are best

Don’t forget a shade cover for your new kennel!

All prices are subject to change without notice

Proudly made in the USA

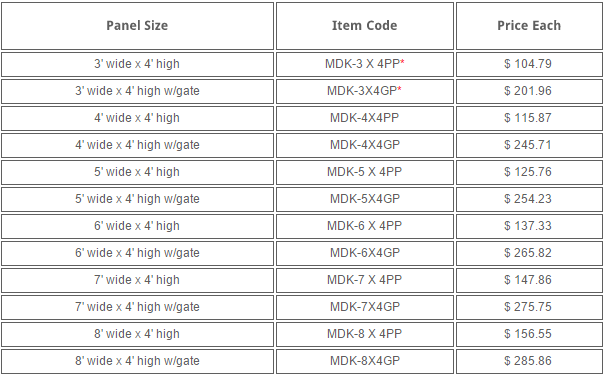

Medium Duty 4' Panels

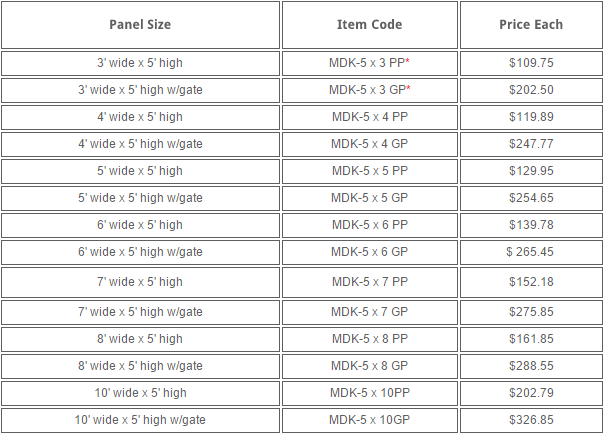

Medium Duty 5' Panels

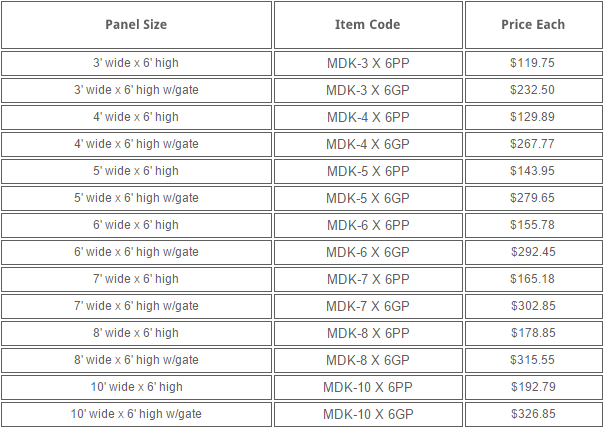

Medium duty 6' Panels

Heavy Duty

Add the correct number of kennel panels, necessary installation parts, and accessories to create your desired kennel design. Kennel panels may be installed in lengths longer than 8′ simply by bolting multiple panels together.  Longer panels may be picked up at our shop, or see our Multi-Runs pages.

Heavy Duty Panel Features:
9 gauge galvanized chain link 2″ mesh
1-3/8″ O.D. 15 gauge (SS15) galvanized, notched and welded frame
Steel wire lacing through every diamond at top and bottom rails

*All panels are shipped complete and ready to install.

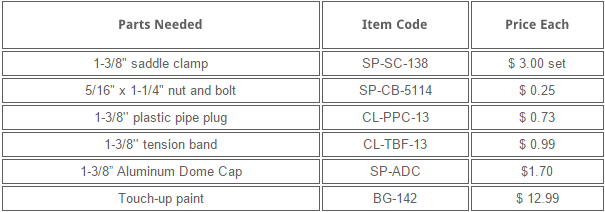

When ordering parts for installation you will need:

· 2- Saddle Clamps per panel connection.

· 1- 5/16x 1-1/4 Carriage Bolt /Nut per saddle clamp..

· 1- Cap for each upright, and 2 per gate.

· Plastic Caps are good but Aluminum Dome Caps are best

· Don’t forget a shade cover for your new kennel!

All prices are subject to change without notice

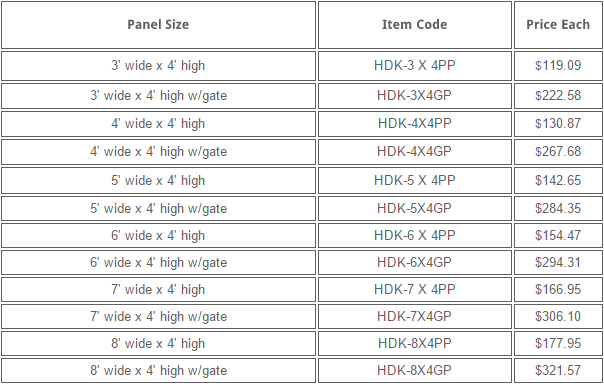

Heavy Duty 4' Panels

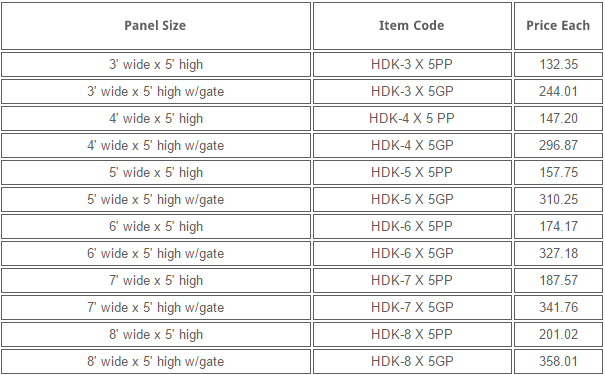

Heavy Duty 5' panels

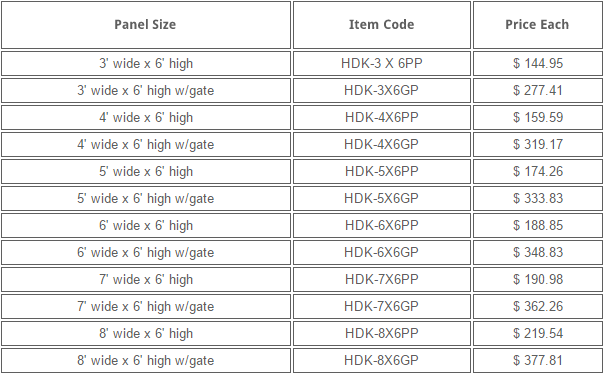

Heavy Duty 6' Panels

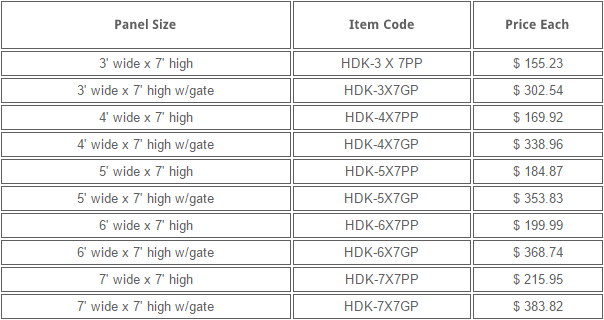

Heavy Duty 7' Panels

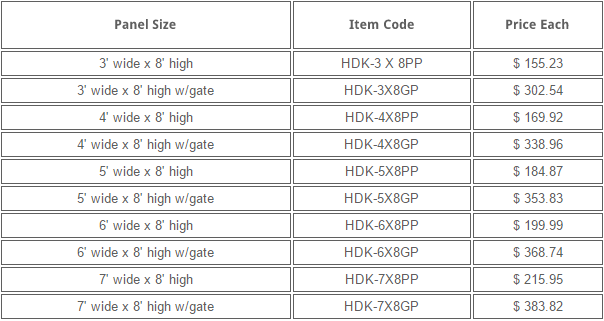

Heavy Duty 8' Panels

Silver/Gold Series Kennels



These are high quality kennels made for the easy going pet.

Specifications are:

18 ga. (.047) Galvanized Tubing with bent frames and welded bottoms

1 ½” legs

12 ½ ga. Galvanized Chain Link fabric

11 1/2 gauge Galvanized Chain Link fabric, and horizontal Bracing

for added strength on our Gold Series Kennels

Tension Rods and Clips at terminals.

Ken-l flip latch as standard



2015-05-21 15_11_20-Happy Tails Pet Supply & Miniature Dachshunds - 618-521-0159



Silver Series Kennels are not recommended for large or aggressive dogs.

6x8 side 2

6x10 angle 3

10x10

Gold Series Kennels feature a cross brace, 11 1/2 gauge fabric and are suitable for medium size dogs

Gold Series Kennel
